無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.

咨詢電話：18168863192

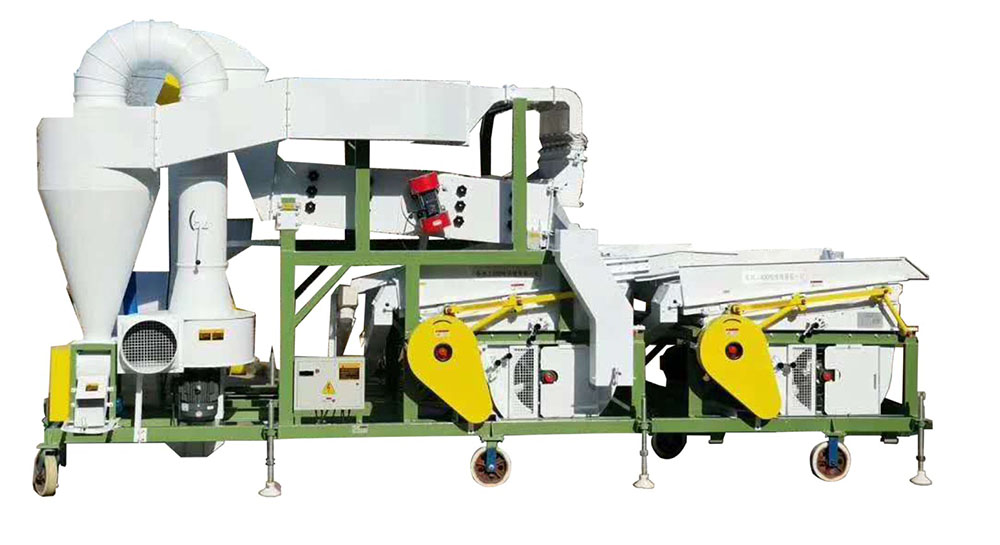

5XF-C型復式清選機 5XF-C multiple cleaning machine

關鍵詞：

咨詢電話：

熊經理 18168863192

周經理 13665101927

產品介紹

5XF-C型復式清選機 5XF-C multiple cleaning machine

產品介紹

5XFZ-15型復式清選機是目前較為先進的機型，其主要配置有：低轉速提升機、二次風選除塵、上方振動篩、下方重力清選、最后振動分級篩，集多功能為一體的可移動式清選設備。單次加工即可去除作物中的穎殼、糠殼、粉塵、輕雜、秕籽、芽籽、蟲蛀粒、霉變粒、赤霉病粒、大雜質及小雜質等，并同時將該物料分為大粒和小粒，并從不同的出口排出。

Model: 型號	Sieve layer number 篩層數量	Screen surface size（mm）篩面尺寸	Screen box vibration frequency （Times / minute）篩箱振動頻率	Gravity vibration frequency （Times/ minute）重力振動頻率	Gravity vibration amplitude（mm）重力振幅	Capacity(t/h) 產量	Power (kW) 功率	Cleanliness 凈度(%）	Weight(kg) 自重量	Overall Size 外形尺寸 L×W×H(mm)
5XFZ-15A	Three 三	1250x2400	930	375	20	10-15	15.5	≥98	≈2500	4160×2540≈3980
5XFZ-15B	Three 三	1250x2400	930	375	20	10-15	20.0	≥98	≈3000	6800×2540×3980
5XFZ-15C	Three 三	1250x2400	930	375	20	10-15	24.0	≥99	≈3500	9105×2540×3980
5XFZ-25D	Five 五	1250x2400	930	375	20	20-25	25.5	≥99	≈3850	9105×2540×3980

Product introduction

The 5xfz-15 multiple cleaning machine is a relatively advanced model at present. Its main configuration includes: low-speed elevator, secondary air separation and dust removal, upper vibrating screen, lower gravity cleaning, and final vibrating classification screen. It is a movable cleaning equipment with multiple functions. Single processing can remove the chaff, chaff, dust, light impurity, chaff seed, bud seed, moth eaten grain, moldy grain, scab disease grain, big impurity and small impurity in the crop, and at the same time, the material is divided into big and small particles, and discharged from different outlets.
