Super Fine Screen Cleaners風篩精選機

Akyurek technology Excell 200系列超細篩分機根據種子的顆粒特性，采用機械篩分的方式，將干燥、顆粒狀、自由流動的物料進行分離。

Akyurek技術的Excell系列清洗機易于使用，壽命長，重要的是，準確性高。它有多種尺寸和品種，所以你很有可能找到適合你特殊分離需要的設備。

一、平幅振動

-采用變頻無級調節進給速度。

-獨立的控制面板，確保在整個篩管寬度上均勻流動

-自清理

-由于種子均勻地撞擊預吸區，大大改善了空氣凈化

-非常適合玉米種子、小麥種子、水稻種子、豆科種子、甜菜種子等

-確保機器的最佳產能利用率

-當入口堵塞，無需停機

-更換產品無需清洗

二、前后吸風系統

-是作為獨立的系統，以確保準確和獨立的空氣清潔

-在物料到達篩子前分離輕顆粒

-提高清洗效果，提高產能

-當種子通過空氣濾網離開清選區域時，會吸走空種子、外殼、灰塵等輕顆粒，確保了產品的凈度。

三、物料（在篩網上的）流動情況

-根據生產能力、物料、分離等要求，適合多種不同要求的產品流程。

-共有六個不同的清選功能，確保優良的凈度和最小的浪費

-更換篩網和出口托盤的位置，很容易做到。

四、沖孔的篩網

-可以做成圓孔和長孔，尺寸從0.3mm至25,0mm

-可做成鋼絲網篩，也可做成沖孔篩網，非常小的公差，以確保最小的清選損失。

篩網有以下標準尺寸可供選擇:

800毫米(L) x 1250毫米(B) = 1米，可用于超過80%的AkyurekExcell程序，因此所需的篩子數量減少

五、樺木膠合板的篩箱

-有防潮和防蟲功能

-在外露區域安裝可更換的耐磨板和篩道

-壽命長，因為樺木夾板很容易承受篩箱的振動

-樺木膠合板減少了共振，降低了噪音，從而獲得了更好的工作環境

六、平衡偏心系統

-配有配重，確保穩定運行

-機器的框架和鋼結構的最小應力

-裝有“重型”軸承

-通過精確調整行程和轉速，確保最大限度地利用篩子的清選效果

七、清篩球框

-確保通過橡膠球有效清洗篩孔

-清篩球耐低度，可在極低溫度下保持清潔效果，因為橡膠球是在非常合適的材料中鑄造的

-清篩球是被澆鑄成固體，可以有效防止種子粘在球體表面（自我清潔）

-單獨安裝在篩箱上，確?？焖俑鼡Q篩子而不需要移動清篩球框架

八、空氣流量開關

-清除沉降室中的輕種子

-通過它，外殼、灰塵等隨氣流被引入除塵系統

-可提供超大沉降室和特殊工藝中心出口

九、輕雜螺旋輸送機

-通過螺旋輸送，將沉降室中的灰塵和輕雜連續排出

-帶指狀擋板，防止虛假空氣進入沉降室，確保沉降室內的最佳粉塵分離

十、空氣提升篩

-通過氣流清選種子，以確保消除輕顆粒

-迫使種子通過下通道，使其最大的表面對著氣流，以獲得最佳的分離效果

-在空氣提升篩上裝有可調節的空氣提升罩，確保最佳的吸除輕雜顆粒

-與空氣提升罩相結合，設計全寬檢查窗，使風量調節更容易。

十一、下吹風裝置

-通過交錯的風扇和空氣導管，當種子分離清潔時，能夠從種子下方提供完全均勻的空氣壓力

-確保產品完全吹過，清除輕種子、外殼、稻草和灰塵

-特別設計的葉輪，確保低噪音水平

-風扇上有轉速無級調節

200系列的樣式

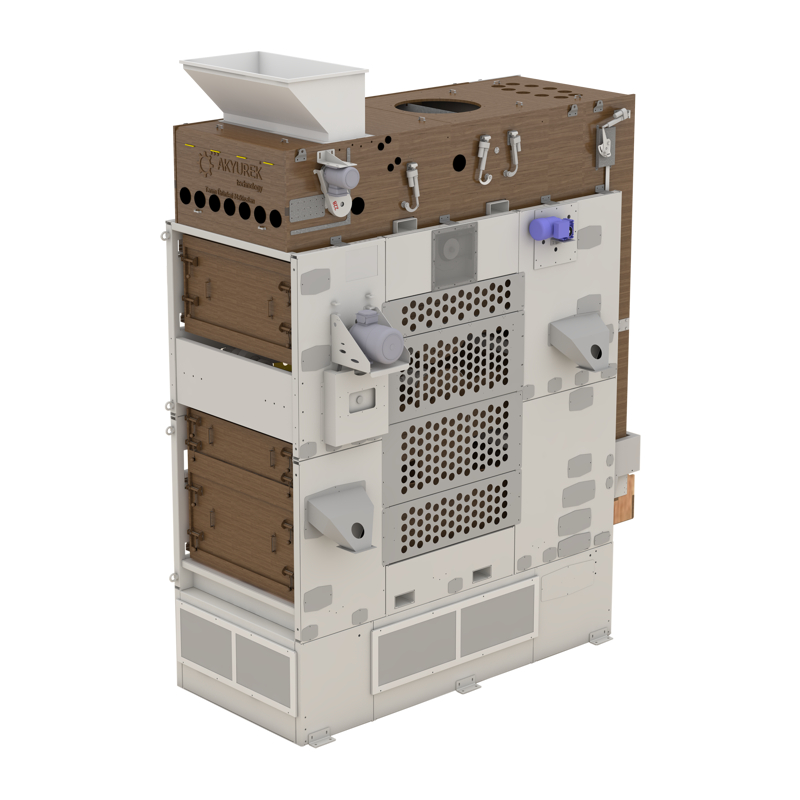

AkyurekExcell 200系列風篩精選機

Excell 200系列擁有市場上先進的空氣系統。本系列產品適用于各種谷物和種子的清洗。分離困難的情況是理想的。

AkyurekExcell 210系列風篩精選機

Excell 210系列在設計上類似于200系列，除了它不包括空氣提升風扇。本系列適用于谷物、種子的清洗。

AkyurekExcell 220系列風篩精選機

Excell 220系列是為谷物和種子的精確分級而設計的。

AKYUREK EXCELL 200 Series

AkyurekTechenologyExcell 200 Series Super Fine Screen Cleaners separate dry, granular, free-flowing material according to particle characteristic of seeds by means of mechanic screening.

Made for ease of use, longevity and above all, accuracy, Akyurek Technology Excell Series Cleaners come in several sizes and varieties – so chances are, you’ll find just the right equipment for your particular separation needs.

1.Full-width Vibratory

-has stepless adjustment of the feed rate by an inverter.

-separate control panel ensures a uniform flow over the entire width of the sieve

- is self-cleaning

-improves the air cleaning considerably as the product hits the pre-suction area uniformly

-is careful to leguminous seeds, beet seeds etc.

-ensures optimal capacity utilization of the machine

-has no down time due to choked up inlet

-requires no cleaning in connection with changing products

2.Pre and After Suction System

-is built as separate systems to ensure a precise and independent air cleaning

-Separates the light particles before the material reaches the sieves

-improves the cleaning effect and results in a higher capacity

-Ensures an excellent purity of the product due to the suction of light particles such as

empty seeds, husks, dust etc. When the product leaves the cleaner via the air screen.

3.Change of Product Flow

-makes many different product flows possible according to the capacity, product, number of fractions etc.

-by means of six different diagrams in the cleaner ensures excellent purity and minimum waste

-is easily done by changing the size of the sieves and the position of the outlet trays

4.Perforated Screens

-are available with round and long holes from 0,3 to 25,0mm

-are also available as wire mesh screens are also available as screen plates with very little tolerance which ensures a minimum cleaning loss.

-are available in a standard size of:

800 mm (L) x 1250 mm (B) = 1 m, which can be used in more than 80% of the AkyurekExcell program so the number of sieves needed is reduced

5.Screenshoes of Birch Plywood

-are moisture and insect-resistant

-are constructed with replaceable wear plates and sieve runners in exposed areas

-have a long lifetime because the birch plywood easily tolerates the vibrations of the screen shoes

-give less resonance owing to the birch plywood and thus a better working environment is obtained

6.Balanced Eccentric System

-is fitted with counter weights ensuring steady running

-involving minimum stress on buildings and steel structures

-is fitted with “heavy duty” bearings

-ensures maximum utilization of the cleaning effect of the sieves owing to accurately attuned stroke and RPM

7.Ball Box

-ensures efficient cleaning of sieves by means of rubber balls

-can maintain the cleaning effect at extremely low temperatures as the rubber balls are cast in a very suitable material

-is cast solid so that it privents stuck seed etc.(self-cleaning)

-is separately mounted in the screen shoes which ensures a quick change of sieves without removing the ball boxes

8.Air Lifting Channel

-eliminates light seeds in the variable expansion chamber

-through which husks, dust etc. are led with the airflow to the after suction system.

-is available with an extra-large expansion chamber and centre outlet for special processes.

9.Screw Conveyor for Light Waste

-ensures continuous discharge of dust and light waste from the air system via screws

-with finger flaps to ensure optimal dust separation in the expansion chamber by preventing false air from entering into the chamber

10.Air Lifting Sieve Screen

-serves to convey the product through the air flow to ensure elimination of light particles

-forces the product through under passage to turn its biggest surface against the air flow in order to obtain optimal separation

-is constructed with adjustable air lifting hood over the air lifting sieve, which ensures optimal collecting up of the discarded light particles

-is combined with air lifting hood, designed with inspection window in full width, in order to

make the adjustment of the air volume easier.

11.Air Lifting Unit

-is capable by means of staggered fans and air guides-of giving a completely uniform air pressure from beneath the product when it leaves the cleaner

-ensures a complete blow through of the product which causes an elimination of light seeds, husks, straw and dust

-with specially designed impellers ensuring low noise level

-has stepless adjustment of RPM on the fans

AKYUREKEXCELL 200 SERIES MODELS

AkyurekExcell 200 Series Super Fine Screen Cleaners

The Excell 200 Series has the most advanced air system on the market. This series is suitable for cleaning of all kinds of grain and seed. Ideal for difficult separations.

AkyurekExcell 210 Series Super Fine Screen Cleaners

The Excell 210 Series is similarin desing to the 200 series, except it does not include the air lifting fans. This series is suitable for cleaning of grain and seed.

AkyurekExcell 220 Series Super Fine Screen Cleaners

The Excell 220 Series is designed for a precise grading of grain and seed.
