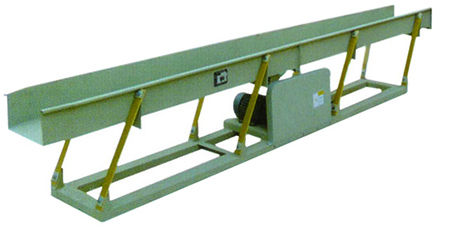

水平振動輸送機Horizontal vibrating conveyor
U型槽,一次折彎成形,通過偏心凸輪往復運轉產生振動力,將槽內物料以水平方向輸送,適合輸送各類粉狀、顆粒狀物料。
型號槽寬mm | 長度m | 振動頻率min | 振動幅度mm | 破碎率% | 產量t/h | 功率kW |
5XBZ 300 | 2-20 | 320次 | 10 | 無 | 5 | 2.2 |
5XBZ 400 | 2-20 | 330次 | 10 | 無 | 10 | 3.0 |
5XBZ 480 | 2-20 | 350次 | 10 | 無 | 20 | 4.0 |
U-shaped groove, one-time bending forming, vibration force generated by reciprocating operation of eccentric cam, conveying materials in the groove in horizontal direction, suitable for conveying all kinds of powder and granular materials.
